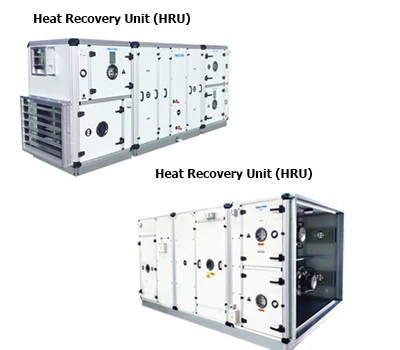

Heat Recovery Unit / Fresh Air Handling Unit

Heat Recovery Unit / Fresh Air Handling Unit In Qatar

The future of workspaces will focus primarily upon wellness and Safety, Poor IAQ leads to several health, breathing related problems and decreased productivity as people spend much time indoors especially in the Middle East countries.

Maven Trading and Installation WLL offer TROSTEN Fresh AHU’s. TROSTEN Industries offers environment friendly rock wool insulation and custom-Built units to suit the site requirements. Fresh Air Handling Units are provided with Heat Recovery Units, various options include heat recovery configurations such as Heat Recovery Wheel, Heat Pipe Heat Recovery, Recuperator and Run Around Coils. TROSTEN Fresh Air Handling Units are supplied with Heat recovery wheels, MERV 13 filters to ensure good quality of air and EC fans to achieve the best possible SFPv values, reduced carbon footprint and addressing redundancy. TROSTEN Fresh Air Handling Units with EC Fans are Eurovent certified and suitable for installations like data centres, pharmaceuticals, Operating Rooms etc

  • Capacity range: 600 CFM to 60000 CFM

For more details please contact +974 31104553 , info@maven-trading.com

  • Capacity range: 600 CFM to 60000 CFM.
  • Eurovent certified, TAH-TFM Series, Double Skin Air Handling Units:.
    • Casing mechanical strength: D1,
    • Casing leakage: L1,
    • Thermal transmittance: T2,
    • Thermal bridge factor: TB2,
    • Filter by-pass leakage: F9
  • Eurovent certified with EC Fans.
  • High efficiency backward curved centrifugal fans, tested and certified by AMCA in accordance to AMCA 210 for air performance and AMCA 300 for sound performance.
  • IE2 / IE3, TEFC, IP55 degree of protection, Class F insulated, VFD compatible electric motors.
  • MERV 8 & MERV 13 filters for Fresh Air Handling Units.
  • AHRI certified cooling in accordance to AHRI 410-91.
  • Specially designed stainless steel construction drain pan with all round edges, avoiding microbial growth as per ASHRAE 62-1999.
  • Environment friendly rock wool insulation. Also available injected polyurethane foam and fiber glass insulation on request.
  • Heresite coating on fins for coastal applications and side plates in SS construction.
  • DX type Fresh Air Handling Units (Refrigerant options: R22, R407c, R410a, 134a, & R404a).
  • Available in both chilled water and direct expansion system.
  • Custom built units to suit site requirements.
  • Unit colour to match the building exteriors.
  • Electro-tinned Evaporator Coils.
  • Inbuilt control panel.
