Electric Heaters

Electric Heaters

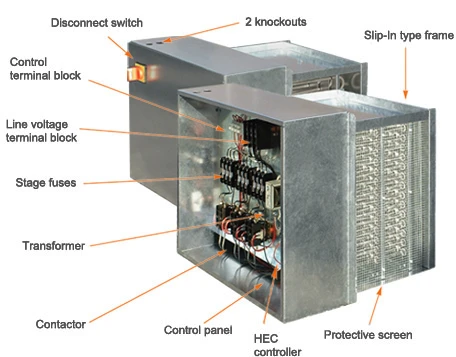

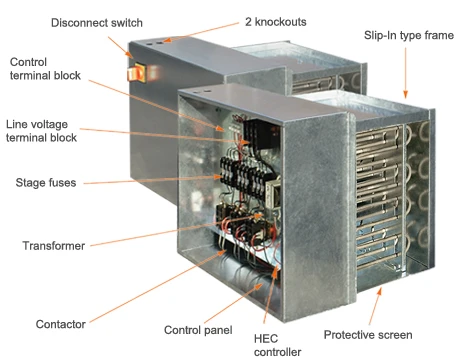

Electric heaters are available in ratings of up to 2000 kW and are used for heating the supply air in duct systems, in central ventilation units and for various industrial processes. If correctly rated, rectangular duct heaters can provide heating for entire houses and buildings. Our flexible production system enables us to adapt the duct heaters accurately to the application. This may concern heaters for air handling units, industrial processes or very arduous environments. This may involve the need for strengthened electrical insulation, the use of stainless steel, high power ratings, high operating temperatures or the like.

  • Can be installed both horizontally and vertically
  • Built-in overheating protections, at least one with automatic reset and one with manual reset
  • Enclosed stainless steel plain tube elements
  • Bulit-in electronic air flow monitor included in several models
  • Several possibilities to adapt you heater to your application. Read more in our brochure

For more details please contact +974 31100354 , info@maven-trading.com

Our Heaters

Circular Duct Heaters
Electric Heaters

VEAB circular duct heaters are used to heat the ventilation air to individual rooms and zones with individually controlled temperatures. In properly sized systems they can also heat up entire buildings. Circular electric duct heaters are also used to heat in ventilation units and heat recovery. The channel heaters are equipped with a built-in electronic controller or for external control.

Specs
  • 8 sizes Ø 80 - 400 mm
  • Power range 200 W - 12000 W
  • Protection class IP43 by default, IP55 on request
  • Several models and sizes for air velocities down to 0.5 m / s
  • Two built-in overheating protection, at least one automatic and at least one with manual reset.
  • Can be mounted both horizontally and vertically
Controls
  • External control
  • Built-in controller
  • Can be equipped with Modbus communication

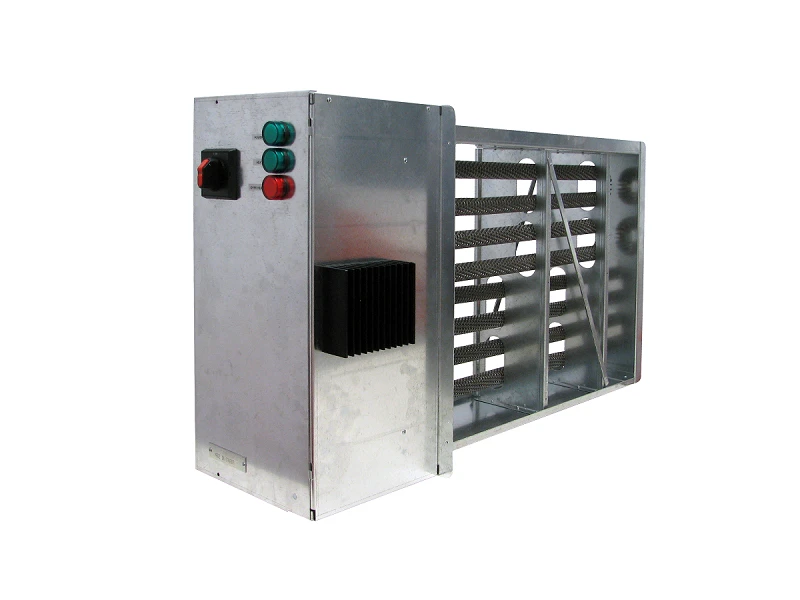

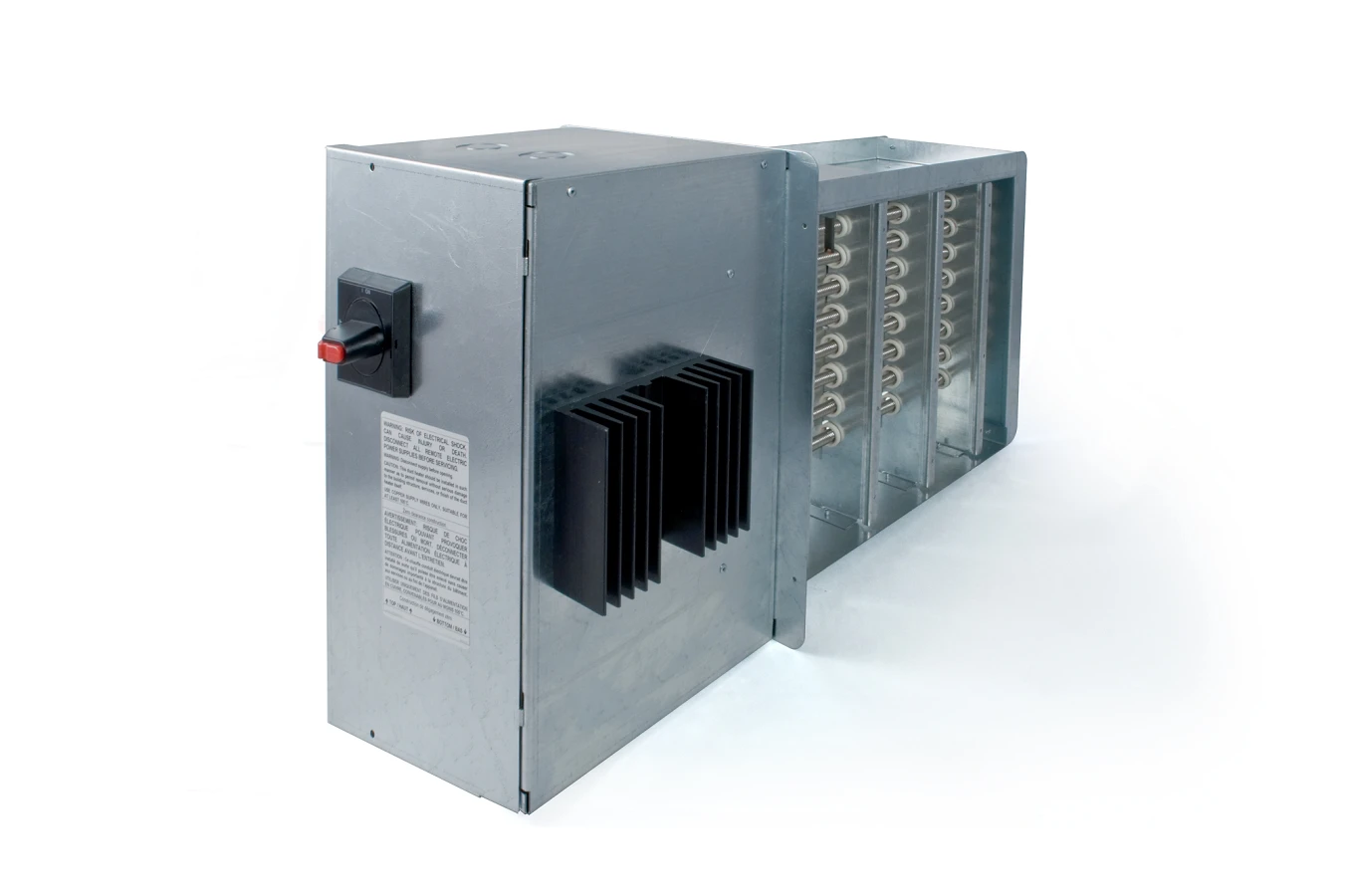

Rectangular Duct Heaters
Electric Heaters suppliers in qatar

VEAB's rectangular duct heaters are available in effects up to 2000 kW and are used to heat up supply air in duct systems, central ventilation units and for various industrial processes. Correctly dimensioned , rectangular duct heaters can respond to the heating of entire houses and buildings. Our flexible production allows us to customize the channel heaters exactly to the application. This may apply to heaters for air handling units, industrial processes or very tough environments. This may require reinforced electrical insulation, stainless steel materials, high power outlets, high temperatures or the like.

Specs
  • Power range 0.5 kW - 2000 kW
  • Protection class IP43 by default, IP55 / IP65 on request
  • Built-in overheat protection min. an automatic and a manually resetable
  • Several different choices to customize the heater for your particular application
  • Can be mounted both horizontally and vertically
Controls
  • External control
  • Built-in controller
  • Can be equipped with Modbus communication
Rectangular - Atex Approved duct heaters
best Electric Heaters

VEAB's rectangular ATEX-approved heater is available in effects up to 1000 kW and is used to heat the air in duct systems, central ventilation units and for various industrial processes in environments where there is a temporary explosion hazard (Zone 1 and Zone 2). Our flexible production enables us to adapt the heaters to various applications such as offshore, chemical industry, oil industry and ships .

Specs
  • Power range 1 kW - 1000 kW.
  • Temperature class T3 (max 200°C).
  • Use in areas where the explosion hazard is gas or steam (Equipment category 2G).
  • Protection class IP66.
  • For external regulation.
  • Can be mounted both horizontally and vertically.
  • Built-in overheat protection and temperature limiter.
  • VFL2-EX has the heating elements mounted in a pull-out cartridge.

Certificates
