Fan Coil Units

Fan Coil Units

Fan Coil Units has only fan and coil apart from the filter section, are the ideal solution to meet the air treatment needs of systems including distribution through ducting or directly into the room and installation in false ceilings or in service rooms. Fan coil units can be wall-mounted, freestanding or ceiling-mounted and may be concealed in ceiling voids. They may be controlled by local thermostats or by a building management system (BMS). Where fan coil units are supplied with chilled water and hot water from central boilers and chillers they are generally referred to as two pipe (either heating or cooling) or four pipe (both heating and cooling) units.



Maven Trading And Installation WLL offer CLINT make Fan Coil Units. CLINT offers a complete and integrated range of machines for centralized air conditioning of residential, commercial and industrial building. The rich production line combines a wide range of value added solutions for market and individual customers needs. From fan coil units to chillers and roof-tops, CLINT’s skill and professionalism can grant customers top production standards, attention to details, best ESEER. levels, and noiselessness: CLINT’s a guarantee of ideal comfort.

For more details please contact +974 31104553 , info@maven-trading.com

Our Units

  • Ductable FCU
  • Water Cassette
  • Wall mounted FCU
  • FCU with cabinet or for built-in installation
  • FCU For Built-In Installation
  • Ducted Blower FCU

  • UTW 63÷544

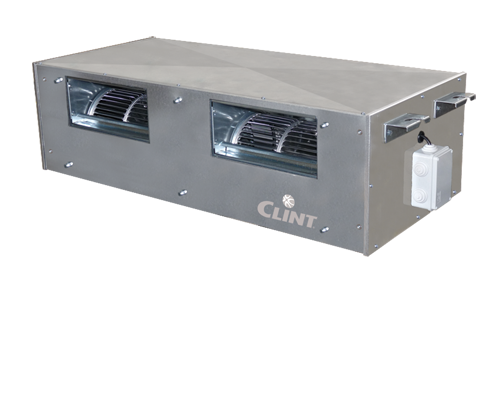

UTW 63÷544
Fan Coil Units In Qatar
  • DUCTABLE FAN COIL UNITS WITH 3-SPEED OR EC INVERTER RADIAL FANS.

  • TCW 22÷122

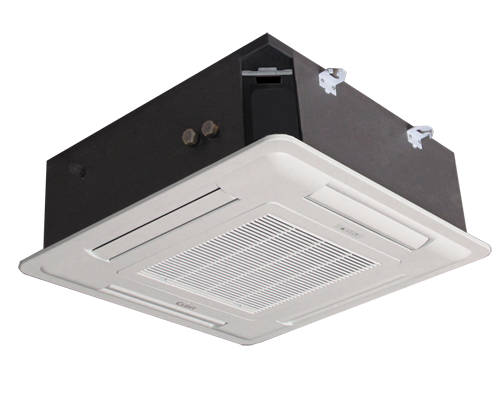

TCW 22÷122
Fan Coil Units Distributor In Qatar
  • WATER CASSETTE WITH 3-SPEED OR EC INVERTER RADIAL FAN.

  • HWW/EC 22÷62 EURÌCE®

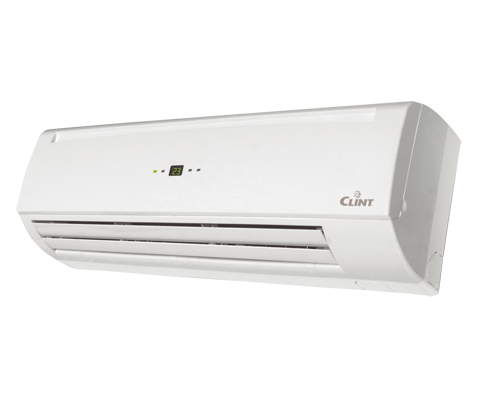

HWW/EC 22÷62 EURÌCE®
Best Fan Coil Units In Qatar
  • WALL MOUNTED FAN COIL UNITS WITH EC INVERTER TANGENTIAL FAN.

  • FIW 13÷74
  • FVW 13÷74 FLOYD®
  • FIW/AP 23÷74

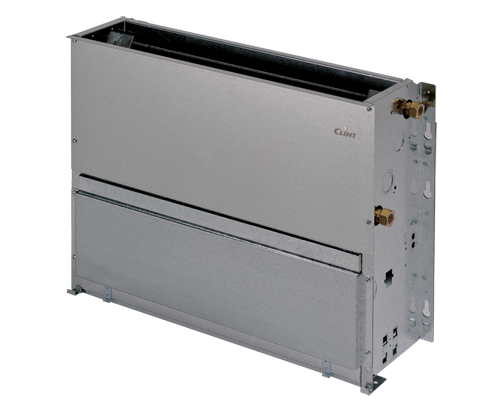

FIW 13÷74
Best Fan Coil Units In Qatar
  • FAN COIL UNITS FOR BUILT-IN INSTALLATION WITH 3-SPEED OR EC INVERTER RADIAL FANS.

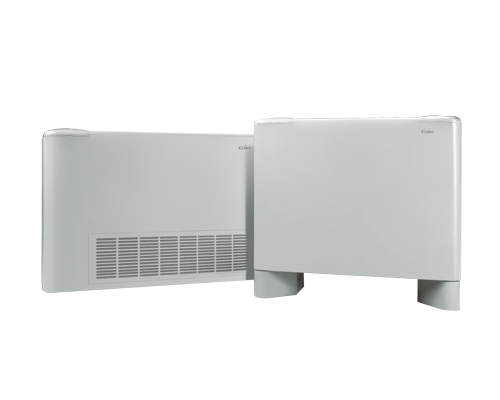

FVW 13÷74 FLOYD®
Best Fan Coil Unit In Qatar
  • FAN COIL UNITS WITH CABINET AND 3-SPEED OR EC INVERTER RADIAL FANS.
FIW/AP 23÷74
Fan Coil Unit In Qatar
  • FAN COIL UNITS FOR BUILT-IN INSTALLATION WITH HIGH AVAILABLE STATIC PRESSURE AND 3-SPEED OR EC INVERTER RADIAL FANS.

  • CEILING CONCEALED FCU, BLOW THROUGH
  • CEILING CONCEALED FCU, DRAW THROUGH
  • CEILING CONCEALED FCU, BLOW THROUGH WITH HIGH DELTA WATER TEMPERATURE
  • CEILING CONCEALED FCU, DRAW THROUGH WITH HIGH DELTA WATER TEMPERATURE

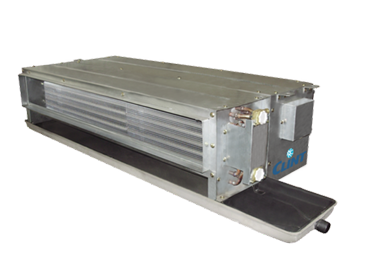

FBW-M 23÷123
Best Fan Coil Units In Qatar

The Blow Through ceiling concealed Fan Coil units of the FBW-M series are designed for installation in domestic ambients or in service business including offices, hotels, restaurants, gyms and shops. If connected to a system equipped with a water chiller, FBW-M generates cool air silently and with instantaneous reaction. Otherwise, durinf the winter, if combined with a heating system with boiler or heat pump, it delivers warm air to satisfy the heating needs of households and the service industry alike. A filter, which absorbs and retains dust in suspension, allows to keep the air quality at a suitable level and its easy removal enables continuous cleaning cycles to be carried out which are particularly important in order to guarantee suitable hygiene standards in highly frequented rooms.


    VERSIONS
  • FBW-M - Built-in horizontal unit rear inlet and horizontal delivery
  • FBW-M/AP - Built-in horizontal unit rear inlet and horizontal delivery. With high ESP fans

    POWER RANGE
  • 2.0-10.7 KW
  • 1.0-3.0 Ton

    FEATURES
  • Structure made of galvanized sheet complete with heat/sound insulation, filter and natural discharge condensation tray.
  • Radial fan type directly coupled to a 4-speed single phase electric motor, with 3 speeds connected in the standard configuration.
  • Heat exchanger coils with copper pipes and aluminium fins with airvent on the distributors.
  • Standard water connections on left side based on air flow direction, they are easily converted to opposite side directly on-site without requiring additional parts.

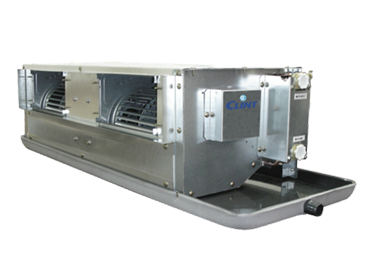

FDW-M 23÷123
Fan Coil Units Suppliers In Qatar

The Draw Through ceiling concealed Fan Coil units of the FDW-M series are designed for installation in domestic ambients or in service business including offices, hotels, restaurants, gyms and shops. If connected to a system equipped with a water chiller, the fan coil generates cool air silently and with instantaneous reaction. Otherwise, during the winter, if combined with a heating system with boiler or heat pump, it delivers warm air to satisfy the heating needs of households and the service industry alike. A filter, which absorbs and retains dust in suspension, allows to keep the air quality at a suitable level and its easy removal enables continuous cleaning cycles to be carried out which are particularly important in order to guarantee suitable hygiene standards in highly frequented rooms.


    VERSIONS
  • FDW-M - Built-in horizontal unit rear inlet and horizontal delivery
  • FDW-M/AP - Built-in horizontal unit rear inlet and horizontal delivery. With high ESP fans

    POWER RANGE
  • 2.1-10.9 kW
  • 1.0-3.0 Ton

    FEATURES
  • Structure made of galvanized sheet complete with heat/sound insulation, filter and natural discharge condensation tray.
  • Radial fan type directly coupled to a 4-speed single phase electric motor, with 3 speeds connected in the standard configuration.
  • Heat exchanger coils with copper pipes and aluminium fins with airvent on the distributors.
  • Standard water connections on left side based on air flow direction, they are easily converted to opposite side directly on-site without requiring additional parts.
FBW-M/HDT 23÷123
Fan Coil Units Distributors In Qatar

The Blow Through ceiling concealed Fan Coils of the FBW-M/HDT series are designed for installation in domestic ambients or in service business including offices, hotels, restaurants, gyms and shops. If connected to a system equipped with a water chiller, FBW-M/HDT generates cool air silently and with instantaneous reaction. A filter, which absorbs and retains dust in suspension, allows to keep the air quality at a suitable level and its easy removal enables continuous cleaning cycles to be carried out which are particularly important in order to guarantee suitable hygiene standards in highly frequented rooms


    VERSIONS
  • FBW-M/HDT - Built-in horizontal unit rear inlet and horizontal delivery
  • FBW-M/HDT/AP - Built-in horizontal unit rear inlet and horizontal delivery. With high ESP fans

    POWER RANGE
  • 2.0-10.4 kW
  • 1.0-3.0 Ton

    FEATURES
  • Structure made of galvanized sheet complete with heat/sound insulation, filter and natural discharge condensation tray.
  • Radial fan type directly coupled to a 4-speed single phase electric motor, with 3 speeds connected in the standard configuration.
  • Heat exchanger coil with copper pipes and aluminium fins with airvent on the distributors specifically designed for working with high delta water temperature.
  • Standard water connections on left side based on air flow direction, they are easily converted to opposite side directly on-site without requiring additional parts.
  • Structure made of galvanized sheet complete with heat/sound insulation, filter and natural discharge condensation tray.
FDW-M/HDT 23÷123
Fan Coil Units Suppliers In Qatar

The Draw Through ceiling concealed Fan Coil units of the FDW-M/HDT series are designed for installation in domestic ambients or in service business including offices, hotels, restaurants, gyms and shops. If connected to a system equipped with a water chiller, FDW-M/HDT generates cool air silently and with instantaneous reaction. A filter, which absorbs and retains dust in suspension, allows to keep the air quality at a suitable level and its easy removal enables continuous cleaning cycles to be carried out which are particularly important in order to guarantee suitable hygiene standards in highly frequented rooms.


    VERSIONS
  • FDW-M/HDT - Built-in horizontal unit rear inlet and horizontal delivery
  • FDW-M/HDT/AP - Built-in horizontal unit rear inlet and horizontal delivery. With high ESP fans

    POWER RANGE
  • 2.0-10.6 kW
  • 1.0-3.0 Ton

    FEATURES
  • Structure made of galvanized sheet complete with heat/sound insulation, filter and natural discharge condensation tray.
  • Radial fan type directly coupled to a 4-speed single phase electric motor, with 3 speeds connected in the standard configuration.
  • Heat exchanger coil with copper pipes and aluminium fins with airvent on the distributors specifically designed for working with high delta water temperature.
  • Standard water connections on left side based on air flow direction, they are easily converted to opposite side directly on-site without requiring additional parts.

  • DBW-M 133÷464
  • DBW-M 643÷2256
  • DBW-M/SZ 133÷464
  • DBW-M/SZ 643÷2256

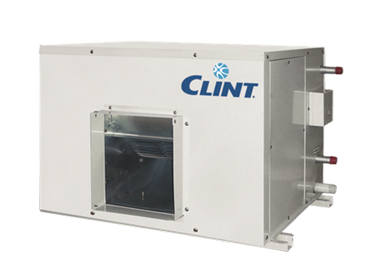

DUCTED BLOWER FAN COIL UNITS.
Fan Coil Units Distributor In Qatar

The Ducted Blower Fan Coil units of the DBW-M series are designed for installation in wide ambients as office buildings, hotels, restaurants, sport structures and shopping malls. If connected to a system equipped with a water chiller, DBW-M generates cool or warm air silently and with instantaneous reaction. The range includes 8 models with cooling capacities from 3 to 14 TON which are characterized by high static pressure (up to 0,6 inWG) to satisfy the needs of wide installations where external unit is far from the internal ambients or there are multiple far ambients to be cooled simultaneously. A filter, which absorbs and retains dust in suspension, allows to keep the air quality at a suitable level and its easy removal enables continuous cleaning cycles to be carried out which are particularly important in order to guarantee suitable hygiene standards in highly frequented rooms.


    VERSIONS
  • DBW-M - Horizontal unit rear inlet and horizontal delivery

    POWER RANGE
  • 11.7-48.7 kW
  • 3.0-14.0 Ton

    FEATURES
  • Structure made of galvanized steel sheet with electrostatic powder paint complete with polyethylene for thermal and acoustical purpose.
  • G3 standard cleanable filter.
  • Radial fan type, directly coupled with single-phase 3-speed electric motor or to 3-phase motors by V belt and variable pulley, depending on
  • the model.
  • Heat exchanger coils with copper pipes and aluminium fins with airvent and drain pan.
  • Standard water connections on left side based on air flow direction. On request units can be provided with water connections on right side.

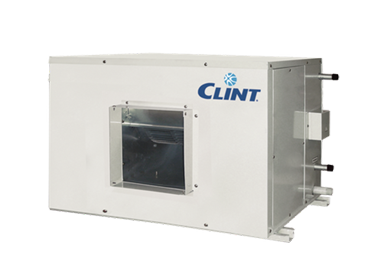

DUCTED BLOWER FAN COIL UNITS.
Best Fan Coil Units Distributor In Qatar

The Ducted Blower Fan Coil units of the DBW-M series are designed for installation in wide ambients as office buildings, hotels, restaurants, sport structures and shopping malls. If connected to a system equipped with a water chiller, DBW-M generates cool or warm air silently and with instantaneous reaction. The range includes 27 models with cooling capacities from 15 to 78 TON, characterized by high static pressure (up to 1,4 inWG) to satisfy the needs of extra wide installations where external unit is far from the internal ambients or there are multiple ambients to be cooled simultaneously. Each model is available in versions with 3, 4 or 6 rows and features both horizontal and vertical air delivery. A filter, which absorbs and retains dust in suspension, allows to keep the air quality at a suitable level and its easy removal enables continuous cleaning cycles to be carried out which are particularly important in order to guarantee suitable hygiene standards in highly frequented rooms.


    VERSIONS
  • DBW-M - Horizontal unit rear inlet and horizontal delivery

    POWER RANGE
  • 52.8-274 kW
  • 15.0-78.0 Ton

    FEATURES
  • Structure made of galvanized steel sheet with electrostatic powder paint complete with polyethylene for thermal and acoustical purpose.
  • G3 standard cleanable filter.
  • Radial fan type, statically and dynamically balanced to reduce vibration and noise to a minimum, directly coupled to 3-phase motors by V belt and variable pulley, installed on rubber shock absorbers.
  • Heat exchanger coils with copper pipes and aluminium fins with airvent and drain pan.
  • Units from size 643 to 646 come with standard horizontal air discharge and are convertible to vertical air discharge on site; sizes from 803 to 1204 come with standard vertical air discharge and are convertible to horizontal air discharge on site.
  • Standard water connections on left side based on air flow direction. On request units can be provided with water connections on right side.
DUCTED BLOWER FAN COIL UNITS.
Best Fan Coil Units Supplier In Qatar

The Ducted Blower Fan Coil units of the DBW-M series are designed for installation in wide ambients as office buildings, hotels, restaurants, sport structures and shopping malls. If connected to a system equipped with a water chiller, DBW-M generates cool or warm air silently and with instantaneous reaction. The range includes 8 models with cooling capacities from 4 to 15 TON which are characterized by high static pressure (up to 0,6 inWG) to satisfy the needs of wide installations where external unit is far from the internal ambients or there are multiple far ambients to be cooled simultaneously. A filter, which absorbs and retains dust in suspension, allows to keep the air quality at a suitable level and its easy removal enables continuous cleaning cycles to be carried out which are particularly important in order to guarantee suitable hygiene standards in highly frequented rooms. The units feature 230V or 380V power supply and 60Hz frequency.


    VERSIONS
  • DBW-M/SZ - Horizontal unit rear inlet and horizontal delivery

    POWER RANGE
  • 12.4-51.6 kW
  • 4.0-15.0 Ton

    FEATURES
  • Structure made of galvanized steel sheet with electrostatic powder paint complete with polyethylene for thermal and acoustical purpose.
  • G3 standard cleanable filter.
  • Radial fan type, directly coupled with single-phase 3-speed electric motor or to 3-phase motors by V belt and variable pulley, depending on
  • the model.
  • Heat exchanger coils with copper pipes and aluminium fins with airvent and drain pan.
  • Standard water connections on left side based on air flow direction. On request units can be provided with water connections on right side.
DUCTED BLOWER FAN COIL UNITS.
Best Fan Coil Units In Qatar

The Ducted Blower Fan Coil units of the DBW-M series are designed for installation in wide ambients as office buildings, hotels, restaurants, sport structures and shopping malls. If connected to a system equipped with a water chiller, DBW-M generates cool or warm air silently and with instantaneous reaction. The range includes 27 models with cooling capacities from 16 to 83 TON, characterized by high static pressure (up to 1,4 inWG) to satisfy the needs of extra wide installations where external unit is far from the internal ambients or there are multiple ambients to be cooled simultaneously. Each model is available in versions with 3, 4 or 6 rows and features both horizontal and vertical air delivery. A filter, which absorbs and retains dust in suspension, allows to keep the air quality at a suitable level and its easy removal enables continuous cleaning cycles to be carried out which are particularly important in order to guarantee suitable hygiene standards in highly frequented rooms. The units feature 380V power supply and 60Hz frequency.


    VERSIONS
  • DBW-M/SZ - Horizontal unit rear inlet and horizontal delivery

    POWER RANGE
  • 56.4-293 kW
  • 16.0-83.0 Ton

    FEATURES
  • Structure made of galvanized steel sheet with electrostatic powder paint complete with polyethylene for thermal and acoustical purpose.
  • G3 standard cleanable filter.
  • Radial fan type, statically and dynamically balanced to reduce vibration and noise to a minimum, directly coupled to 3-phase motors by V belt and variable pulley, installed on rubber shock absorbers.
  • Heat exchanger coils with copper pipes and aluminium fins with airvent and drain pan.
  • Units from size 643 to 646 come with standard horizontal air discharge and are convertible to vertical air discharge on site; sizes from 803 to 1204 come with standard vertical air discharge and are convertible to horizontal air discharge on site.
  • Standard water connections on left side based on air flow direction. On request units can be provided with water connections on right side.
